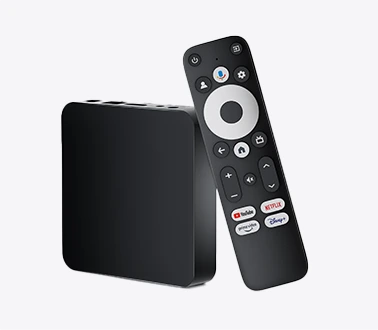

TV BOX Model: U16

Trusted by Telecom Operators, IPTV Providers & Distributors Worldwide

占位 If you are an established brand, we can assist in applying for Google certification under your brand name, ensuring access to the Google Play Store and official Android TV OS.Yes! If you are an established brand, we can assist in applying for Google certification under your brand name, ensuring access to the Google Play Store and official Android TV OS.

Yes! If you are an established brand, we can assist in applying for Google certification under your brand name, ensuring access to the Google Play Store and official Android TV OS.

Download
Product Description Specifications Product Features Product Video

Product Description

Specifications

Basic Parameters

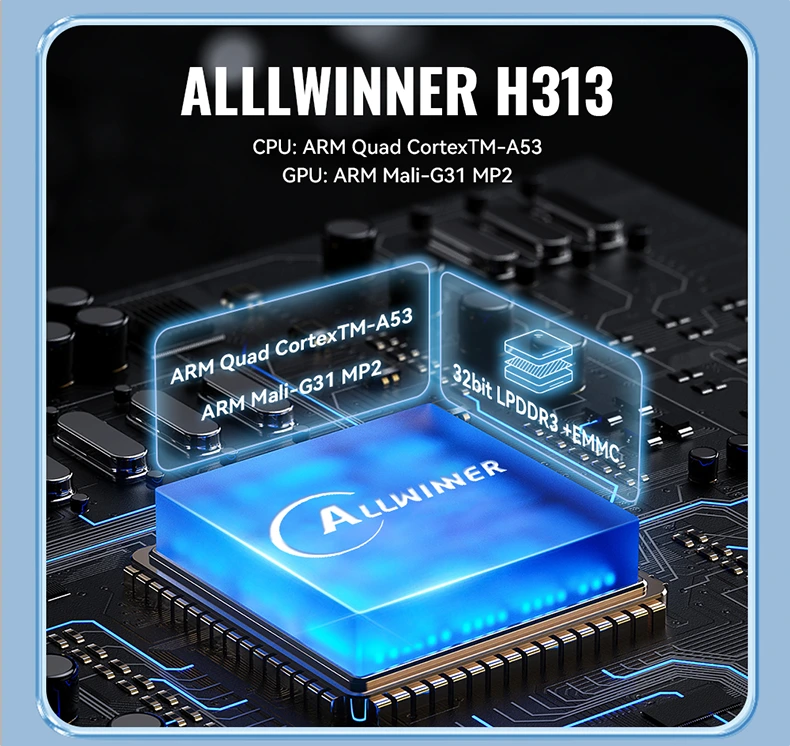

System SoC: Allwinner H313
CPU: ARM Quad CortexTM-A53
GPU: ARM Mali-G31 MP2
DMCP: 2+8GB/2+16GB
OS: Android™10
Media Video Decoding:
H.265 Main10@L5.1 up to 4K@60fps
VP9 Profile 2 up to 4K@30fps
AVS2 JiZhun 10bit Profile up to 4K@30fps
H.264 BP/MP/HP@L4.2 up to 4K@30fps
H.263 BP up to 1080p@60fps
MPEG-4 SP/ASP@L5 up to 1080p@60fps
MPEG-2 MP/HL up to 1080p@60fps
MPEG-1 MP/HL up to 1080p@60fps
Xvid up to 1080p@60fps
Sorenson Spark up to 1080p@60fps
VP8 up to 1080p@60fps
AVS/AVS+ JiZhun Profile up to 1080p@60fps
WMV9/VC1 SP/MP/AP up to 1080p@60fps
JPEG HFIF file format up to 45MPPS
Video Encoding
H.264 BP/MP/HP
H.264 supports I/P frame, and only supports single reference frame
MJPEG/JPEG baseline
Maximum 16-megapixel (4096 x 4096) resolution for H.264 encoding
H.264 encoding capability: 1080p@60fps
JPEG snapshot performance of 1080p@60fps independently
Supports the constant bit rate (CBR)/variable bit rate (VBR) bit rate control mode, ranging from 256kbit/s to 100Mbit/s
Encoding of eight regions of interest (ROIs)
Audio Codec
Two audio digital-to-analog (DAC) channels
Supports 16-bit and 20-bit sample resolution
8 kHz to 192 kHz DAC sample rate
95+2dB SNR@A-weight, -80+3dB THD+N, output Level more than 0.55Vrms
One audio output
One differential LINEOUTP/N or single-ended LINEOUTL/R output
Supports Dynamic Range Controller (DRC) adjusting the DAC playback
One 128x24-bits FIFO for DAC data transmit
Programmable FIFO thresholds
DMA and Interrupt support
Audio HUB
Supports 2 Digital Audio MIXER(DAM)
Supports 3 I2S/PCM interfaces for connecting external devices, and 1 I2S/PCM for connecting internal HDMI
Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
I2S mode supports 8 channels, and 32-bit/192 kbit sample rate
I2S and TDM modes support maximum 16 channels, and 32-bit/96 kbit sample rate
DMIC
Supports maximum 8 digital PDM microphones
Supports sample rate from 8 kHz to 48 kHz
Network 2x2 MIMO Wi-Fi 2.4GHz/5GHz(Optional) 802.11 a/b/g/n/ac
Antenna:WIFI+WIFI/BT COMBO or 3 antanas(Optional)

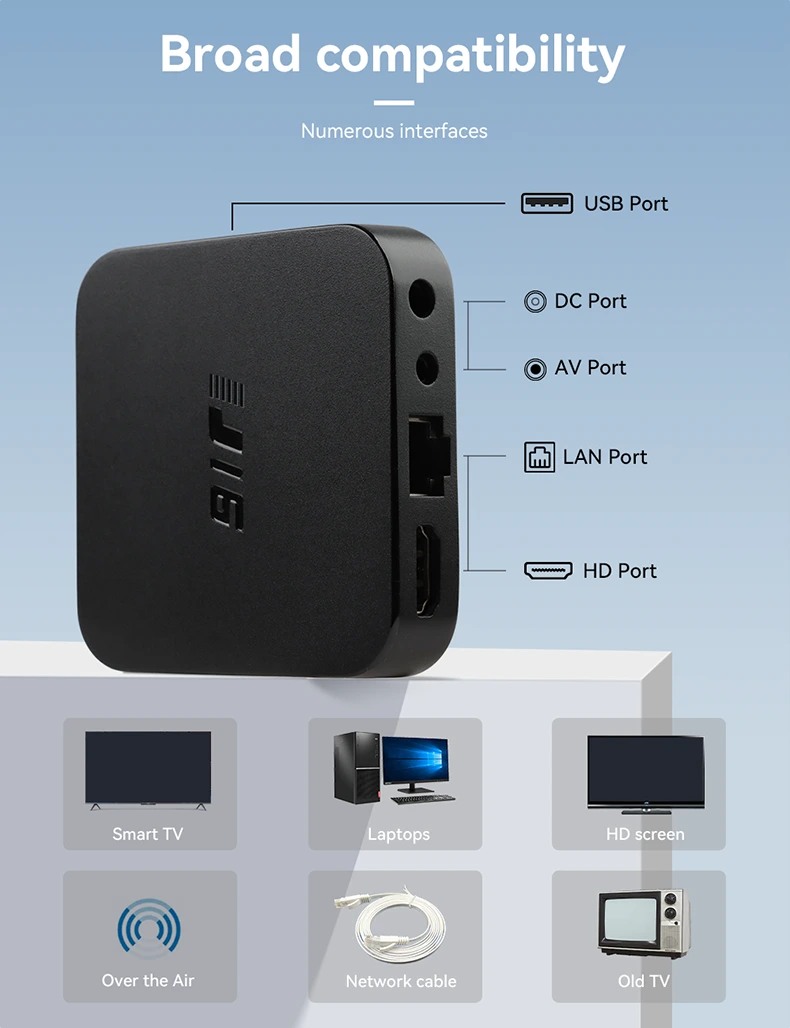

I/O Port DC Jack 3.5mm 5V 1A
HDMI Port
USB2.0 Port *1
RJ45
AV 3.5mm
Reset Button
Light RGB LED

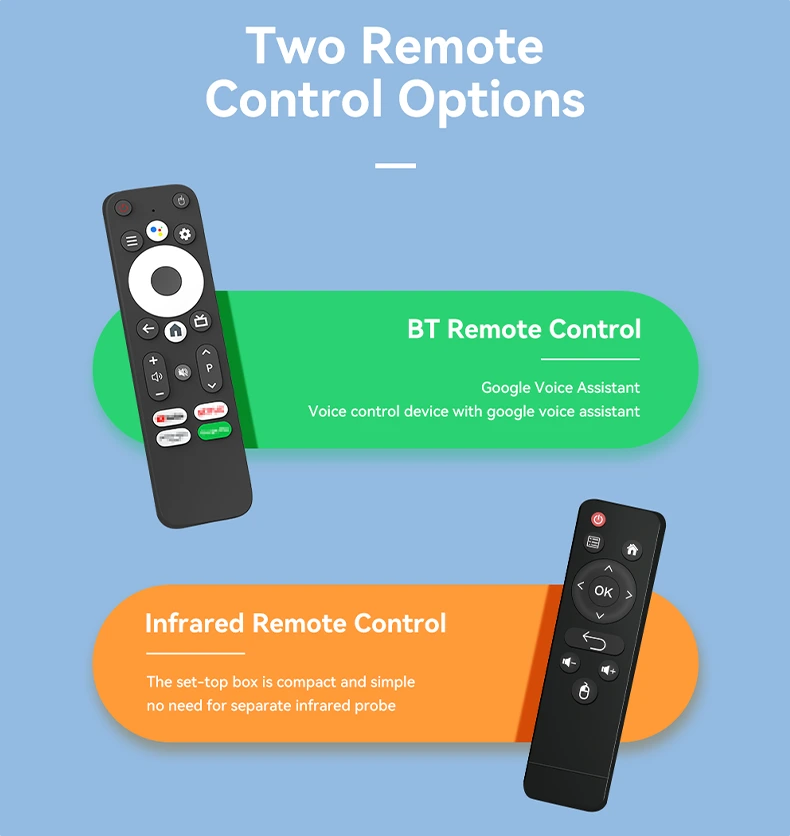

RC IR RC
Other Input voltage:DC input 5V 1A
Operation temperature:0~40℃

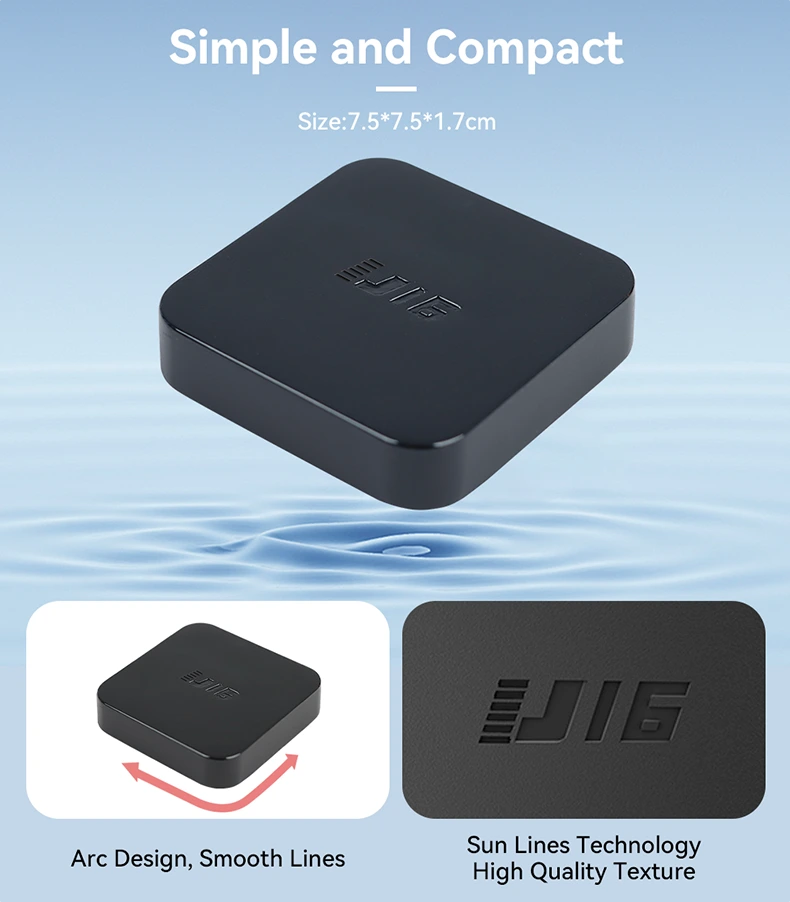

Material: Plastic

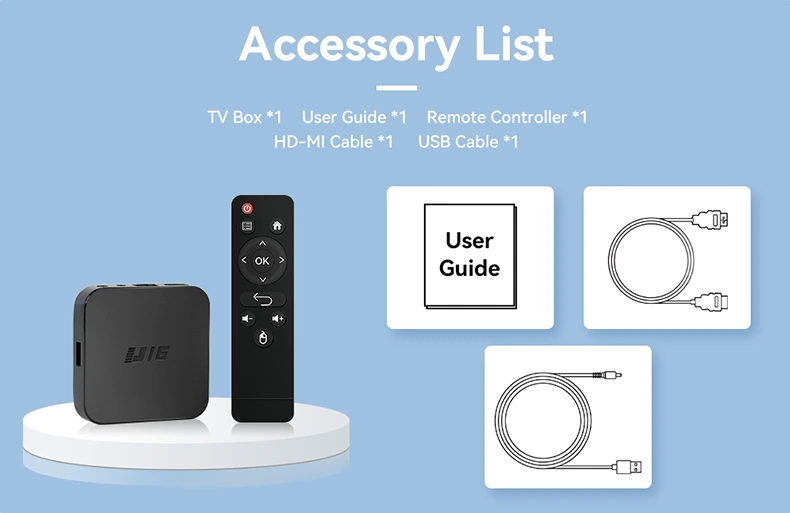

Proposed Accessory: IR RC,5V1A Adapter,DC Cable, HDMI cable

Product Features

  • Supports video decoding up to 4K@60fps; HDR;
  • System upgrading:Upgrade software via USB or network (OTA)
  • Support pre-install all kinds of multi-media streaming app(Youtu, Netflix…)
